Single Phase Frequency Inverter

SINAMICS G110 – the smallest member of the SINAMICS family – is the fre- quency inverter for single phase 200 to 240 V line supplies for variable speed applications. It is extremely simple to install and is easily handled/operated thus making it a true multi-talent for many drive applications up to 3 kW.

State-of-the-art drives offer many advantages

Today’s applications demand drive solutions with the optimum performance. Smooth drive performance increases the precision and reduces the stress on machines and plant. A SINAMICS G110 drive is extremely simple to configure and creates low-cost opportunities for optimizing new generations of products and innovative applications. Smooth and continuous speed control, quiet and with small footprint, SINAMICS G110 couples high operational reliability with high service lifetime.

SINAMICS: system-based innovation

SINAMICS drives are part of the unified Siemens modular system to address the growing diversity in machines and plant construction. SINAMICS - scalable in its power, voltage and technological functions - provides real innovation potential down to the smallest drive.

The new variety for variable speed drives

SINAMICS G110 is a frequency inverter with basic functions for a variety of industrial variable-speed drive applications.
The particularly compact SINAMICS G110 inverter operates with voltage frequency control on single-phase supplies (200 V to 240 V).
It is the ideal low-cost frequency inverter solution for the lower power range of the SINAMICS family.

SINAMICS G110 - Its strengths in brief

Easy wiring
by using user-friendly connection terminals as for contactor and a ready to connect presetting
Uncomplicated engineering und parameterizing
with SIZER und STARTER tools and with the optional Basic Operator Panel (BOP)
Quick series comissioning
time saving copying of parameters with the Basic Operator Panel

SINAMICS G110 - Technical data

Voltage and power ranges 1AC 200 – 240 V, ± 10%, 0.12 kW – 3 kW
Operating temperature -10°C to +40°C
Types of control linear V/f characteristic (with programmable voltage boost); quadratic V/f-characteristic; multipoint characteristic (programmable V/f characteristic)
Inputs / Outputs 3 digital inputs; variant with analog input; variant with RS485 interface (USS protocol)

SINAMICS G110 - Typical uses

SINAMICS G110 is especially suited for use with pumps and fans, or as a drive in various industrial sectors, such as the food, textile and packaging industries. as well as for conveyor systems, factory gate and garage door drives, and as a universal drive for moving billboards and fitness equip- ment.

More Product Varity
  "SIEMENS" MM 420
  "NOCCHI" Inverter Pump
  "SIEMENS" MM 430
  "SIEMENS" MM 440

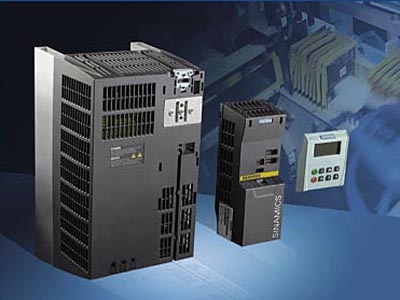

Low Voltage Inverters for General Applications SINAMICS

The Modular Single-motor Drives for Small and Medium Power Ratings in a Central or Distributed Design

The SINAMICS G120 frequency inverter for the 0.37 to 250 kW output range has a modular structure and is equipped with a multitude of new functions, setting a new standard in safety, communication capability and energy recovery for general performance inverters.
The low voltage inverters SINAMICS G110D and SINAMICS G120D have been specifically designed to address conveyor technology applications in the industrial enviroment. They are characterized by their very flat type of construction, a uniform footprint and high degree of uniformity for power outputs from 750 W to 7.5 kW.
