Eagle Flame Detector Series

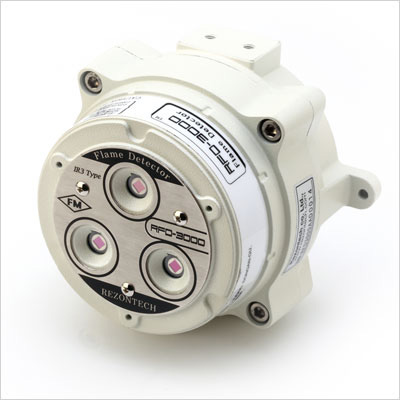

Structure
• Dimensions : W150 x H103 x D125 mm W5.9 x H4.1 x D4.9 Inch
• Enclosure Material : Aluminum • Shipping Weight : 1.2kg
• Color : Ivory White • Conduit Entry Size : 2 x 1/2 inch PF.

Electrical
• Operating Voltage : Typical DC24V (18 to 30)
• Power Consumption : 4.5W maximum at 30 vdc
• Wiring : 14AWG(2.08mm2) to 24AWG(0.205mm2) shielded cable recommended.
• Electromagnetic Compatibility : EMC Protected
-------------------------------------------------------------------------------------------------------------------------------------------

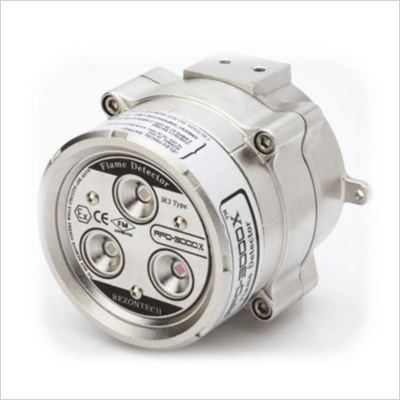

Structure
• Dimensions : W134 x H117 x D112 mm W5.3 x H4.6 x D4.3 Inch
• Enclosure Material : Stainless steel 316
• Shipping Weight : 7.5 kg
• Color : Metal
• Conduit Entry Size : 2 x 1/2 inch NPT, M 20X1.5

Electrical
• Operating Voltage : Typical DC24V (18 to 30)
• Power Consumption : 4.5W maximum at 30 vdc
• Wiring : 14AWG(2.08mm2) to 24AWG(0.205mm2) shielded cable recommended.
• Electromagnetic Compatibility : EMC Protected
-------------------------------------------------------------------------------------------------------------------------------------------


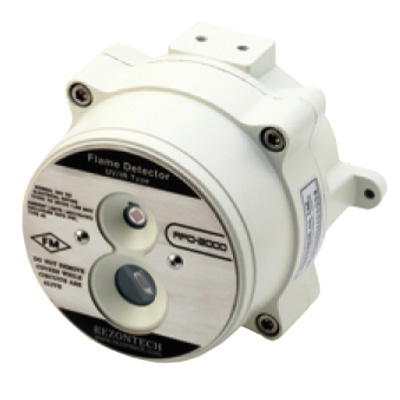

Structure
• Dimensions : W150 x H125 x D103 mm W5.9 x H4.92 x D4.05 Inch
• Enclosure Material : Aluminum alloy
• Shipping Weight : 2.2kg
• Color : Ivory
• Conduit Entry Size : 2 x 1/2 inch PF.

Electrical
• Operating Voltage : Typical DC24V (17 to 32).
• Power Consumption : 1.8W maximum at 32 vdc
• Wiring : 14AWG(2.08mm2) to 24AWG(0.205mm2) shielded cable recommended.
• Electromagnetic Compatibility : EMC Protected
-------------------------------------------------------------------------------------------------------------------------------------------

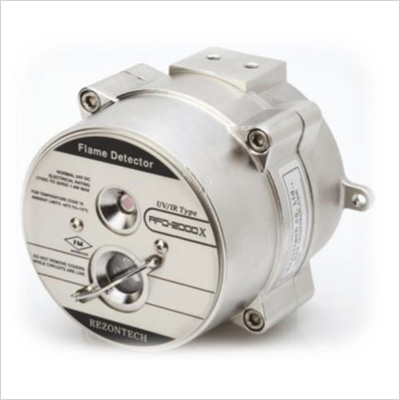

Structure
• Dimensions : W134 x H117 x D120 (mm) W5.3 x H4.6 x D4.7 (inch)
• Enclosure Material : Stainless steel 316
• Shipping Weight : 3.4 kg
• Color : Metal
• Conduit Entry Size : 2 x 1/2 inch PF

Electrical
• Operating Voltage : Typical DC24V (17 to 32)
• Power Consumption : 1.8W maximum at 32 vdc
• Wiring : 14AWG(2.08mm2) to 24AWG(0.205mm2) shield cable recommended.
• Electromagnetic Compatibility : EMC Protected
-------------------------------------------------------------------------------------------------------------------------------------------

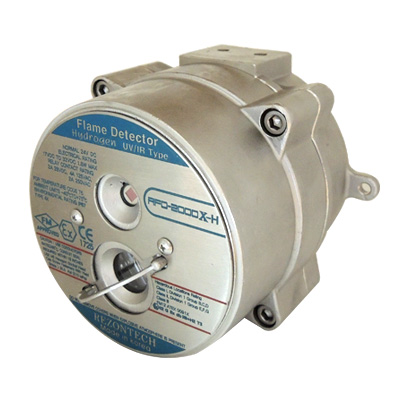

Structure
• Dimensions (body) : W134 x H117 x D120 mm W5.3 x H4.6 x D4.7Inch
• Enclosure Material : Stainless steel 316
• Shipping Weight : 3.4 kg (with Bracket)
• Color : Metal
• Conduit Entry Size : 2 X 1/2 inch NPT, M20 X 1.5

Electrical
• Operating Voltage : Typical DC24V (17 to 32).
• Power Consumption : 1.8W maximum at 32 vdc
• Wiring : 14AWG(2.08mm2) to 24AWG(0.205mm2) shielded cable recommended.
• Electromagnetic Compatibility : EMC Protected
-------------------------------------------------------------------------------------------------------------------------------------------


Specification
• Type : Triple Infrared, Indoor, Explosion-proof, Particulate, Acid-proof
• Nominal sensing range : 50m
• Sensing angle : 90°, Cone type
• Explosion-proof class : T6,IP67,IIC(Korea Gas Safety Corporation)
• Operating temp. :-40 ~ +75°C
• Keeping temp. : -50 ~ +90°C
• Humidity : 0~95%
• Output signal
    › RELAY
    › Fire : 5A(250VAC, 30VDC), A connect point
    › O.C (Open Collector)
        Fire : MAX DC 32V, 10mA
        Error : MAX DC 32V, 10mA
    › 4~20mA
    › RS485
• Function
    › Diagnostic sensor fault enable - Self test

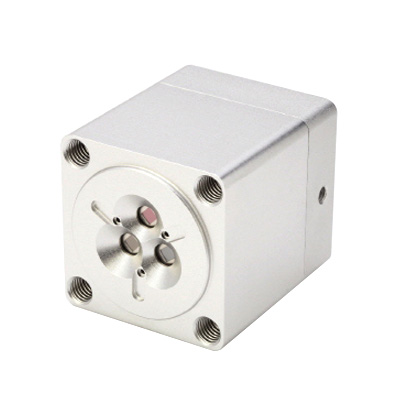

Structure
• Material : Aluminum 6061
• Surface : Anodizing Process
• Color : White silver
• Weight : About 0.53㎏
• External : 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF

Electrical
• Power Cunsumption : 3.9W
• Voltage : DC 24V,(17~30V, pulsating current enable)
• Current › Idel(Sensing) : 100mA
    › Fire(Activating, Emergency)(Sensing) : 120mA
    › Self test : 170mA
-------------------------------------------------------------------------------------------------------------------------------------------
Specification
• Type : Triple Infrared, Outdoor, Non explosion-proof, Particulate
• Nominal sensing range : 50m
• Sensing angle : 90°, Cone type
• Explosion-proof class : T6,IP67,IIC(Korea Gas Safety Corporation)
• Operating temp. :-40 ~ +75°C
• Keeping temp. : -50 ~ +90°C
• Humidity : 0~95%
• Output signal
    › RELAY
    › Fire : 5A(250VAC, 30VDC), A connect point
    › O.C (Open Collector) Fire : MAX DC 32V, 10mA Error : MAX DC 32V, 10mA
    › 4~20mA
    › RS485
• Function
    › Diagnostic sensor fault enable - Self test
    › Remote self diagnostic ON/OFF control ( BIT )

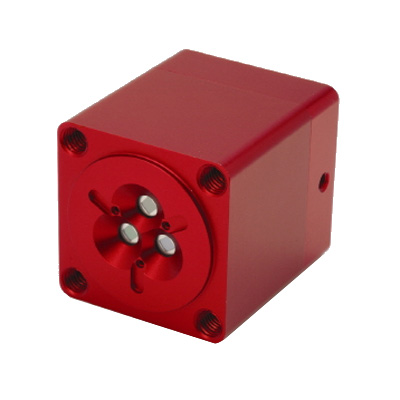

Structure
• Material : Aluminum 6061
• Surface : Anodizing Process
• Color : Red
• Weight : About 0.53㎏
• External : 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF

Electrical
• Power Cunsumption : 3.9W
• Voltage : DC 24V,(17~30V, pulsating current enable)
• Current › Idel(Sensing) : 100mA
    › Fire(Activating, Emergency)(Sensing) : 120mA
    › Self test : 170mA
-------------------------------------------------------------------------------------------------------------------------------------------
Specification
• Type : Triple Infrared, Indoor, Non explosion-proof
• Nominal sensing range : 50m
• Sensing angle : 90°, Cone type
• Explosion-proof class : T6,IP66,IIC(Korea Gas Safety Corporation)
• Operating temp. :-40~+75℃
• Keeping temp. :-50~+90℃
• Humidity : 0~95%
• Output signal
    › RELAY
    › Fire : 5A(250VAC, 30VDC), A connect point
    › O.C (Open Collector)
        Fire : MAX DC 32V, 10mA
        Error : MAX DC 32V, 10mA
    › 4~20mA
    › RS485
• Function
    › Diagnostic sensor fault enable - Self test

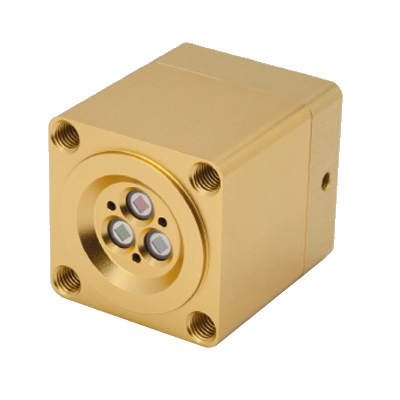

Structure
• Material : Aluminum 6061
• Surface : Anodizing Process
• Color : Gold
• Weight : About 0.52㎏
• External : 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF

Electrical
• Power Cunsumption : 3.8W
• Voltage : DC 24V,(17~30V, pulsating current enable)
• Current › Idel(Sensing) : 100mA
    › Fire(Activating, Emergency)(Sensing) : 120mA
    › Self test : 170mA
-------------------------------------------------------------------------------------------------------------------------------------------
Specification
• Type : Ultraviolet and Infrared, Indoor, Explosion-proof, Particulate
• Nominal sensing range : 50m
• Sensing angle : 90°, Cone type
• Operating temp. : -40 ~ +75°C
• Keeping temp. : -50 ~ +90°C
• Humidity : 0~95%
• Explosion class : Exd IIC, T6,IP67(KGS,ATEX)
• Output signal
    › Relay
        Fire : 1A ( 250VAC, 30VDC ), A connect point
        Error : 1A ( 250VAC, 30VDC ), A-B connect point
    › 4~20mA › RS485 • Function
    › Diagnostic sensor fault enable - Self test
    › Remote self diagnostic ON/OFF control ( BIT )

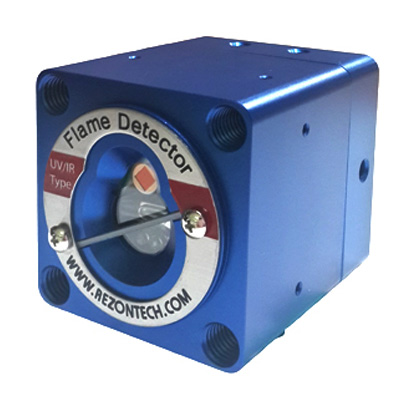

Structure
• Material : Aluminum 6061
• Surface : Anodizing Process
• Color : Blue
• Weight : About 0.53kg
• External : 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF

Electrical
• Power Consumption : 5.8W
• Voltage : DC 24V, ( 17~30V, pulsating current available)
• Current
    › Idle(Sensing) :60mA
    › Fire(Activating, Emergency)(Sensing) : 80mA
    › Self test : 120mA
-------------------------------------------------------------------------------------------------------------------------------------------
